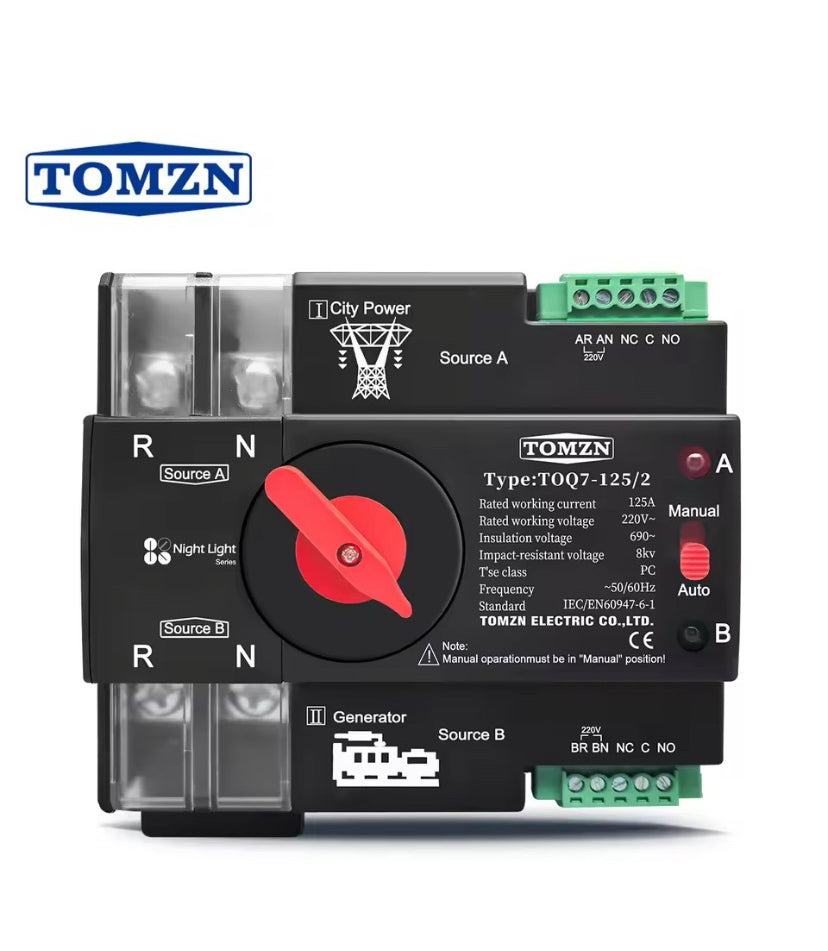

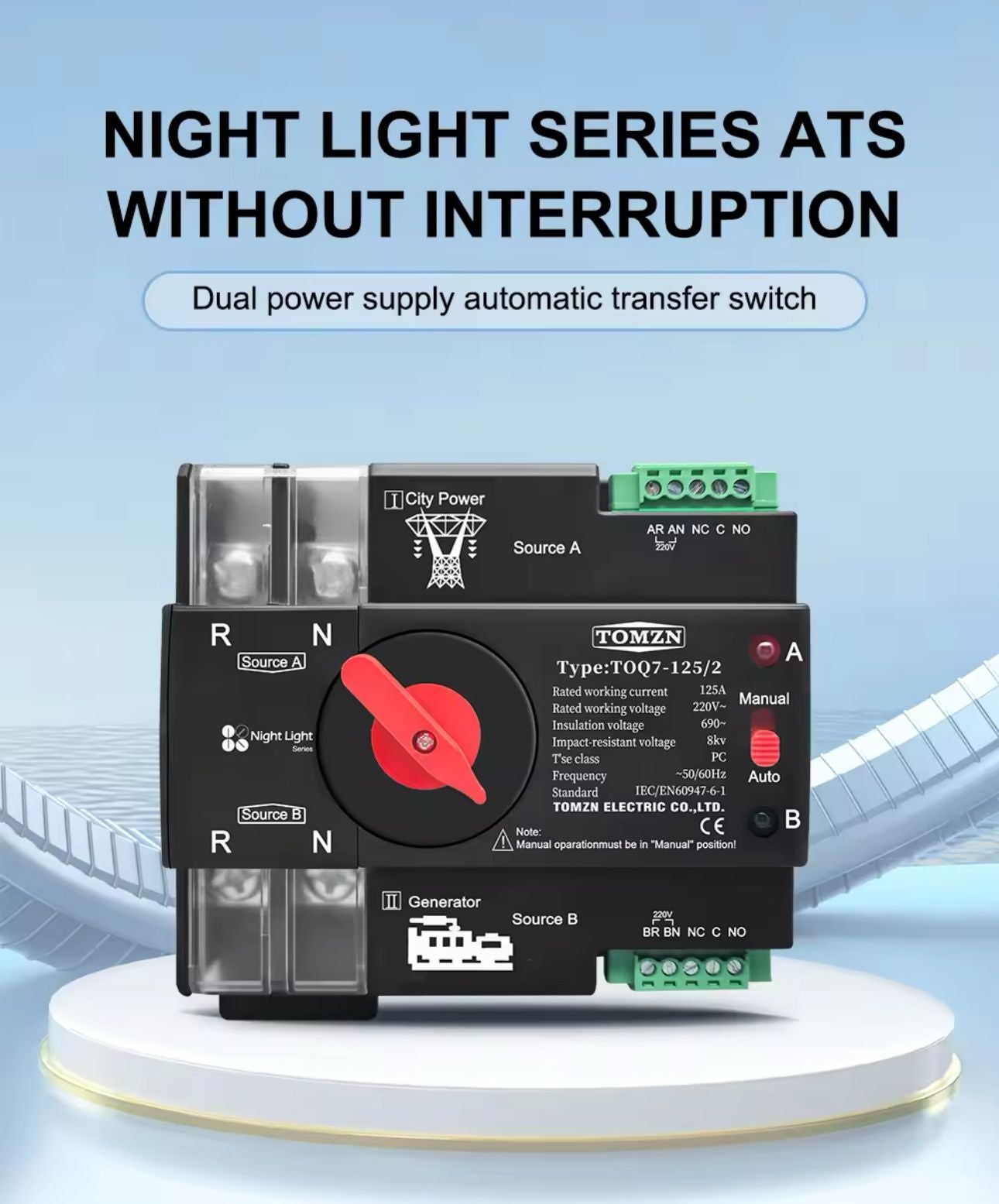

TOMZN TOQ7-125 2P Automatic Transfer Switch

The TOMZN TOQ7 is a professional-grade, PC-level Automatic Transfer Switch designed for seamless power management. Whether you are switching between Solar Inverters, Generators, or WAPDA/K-Electric, the TOQ7 ensures your critical devices (PCs, WiFi routers, and security cameras) stay powered without restarting.

Key Features

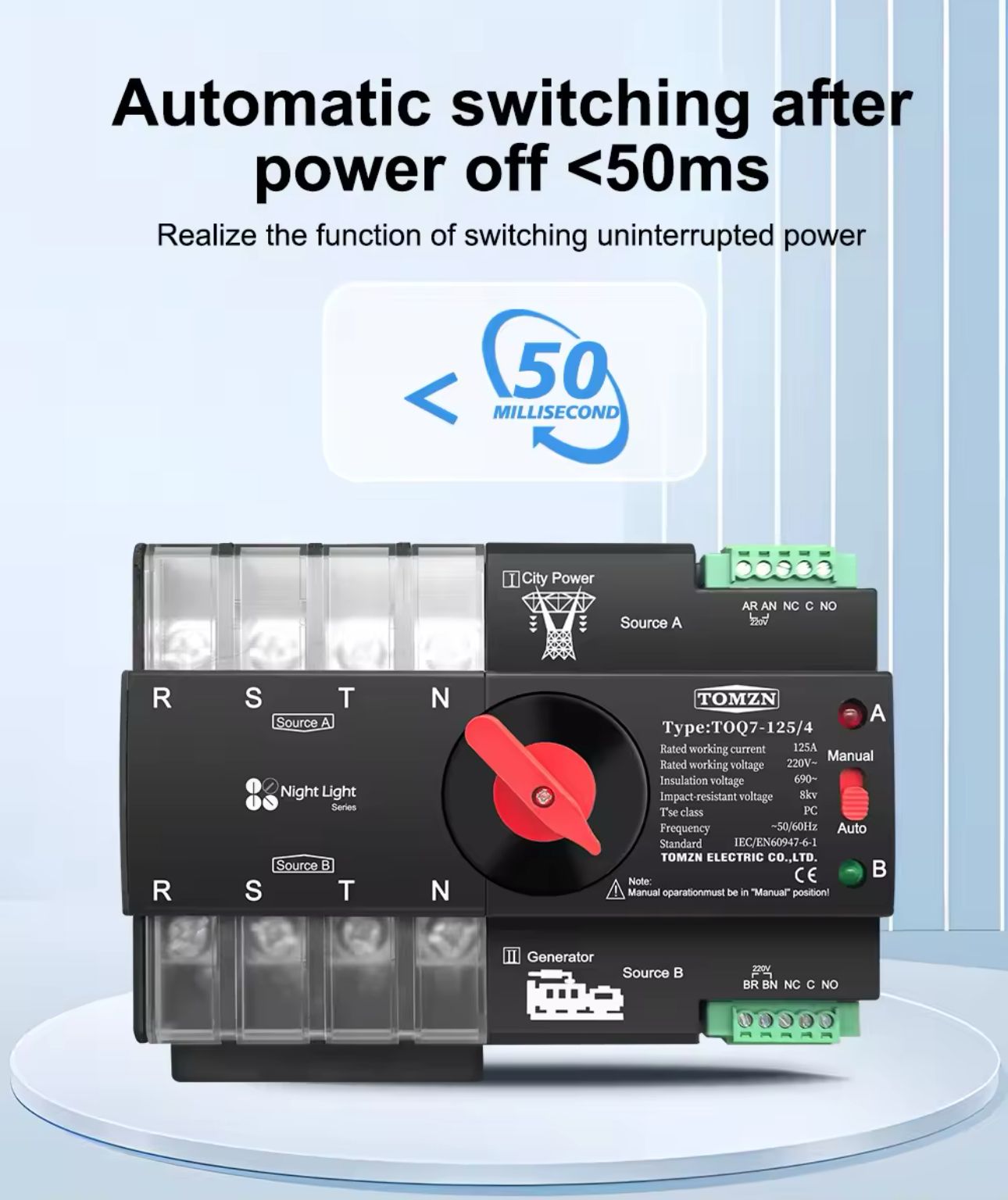

• Ultra-Fast Switching (<50ms): Experience near-instantaneous power transitions. The TOQ7 is significantly faster than the older TOQ3/MCB-type switches (which can take up to 4 seconds), ensuring your electronics don't reset.

• PC-Level Reliability: Unlike standard breakers, this is a dedicated transfer switch built for high-frequency switching and long-term durability.

• Dual Mode Operation: Easily toggle between Automatic (for 24/7 peace of mind) and Manual (for maintenance or testing) using the front-panel red switch.

• Solar & Inverter Ready: Specifically optimized for Photovoltaic (PV) systems. It effectively manages the transition from unstable inverter power to stable grid power.

• Enhanced Safety: Features a built-in Safe Arc Extinguishing Chamber and isolation plates to prevent electrical hazards during high-load transfers.

• High Surge Protection: Rated for an impulse withstand voltage of 8kV, protecting your system against lightning and grid spikes.

Technical Specifications

🚀 Make it Smart: WiFi Control & Remote Switching

Take your power management to the next level by pairing the TOMZN TOQ7 ATS with our Smart WiFi Circuit Breaker.

While the TOQ7 handles the physical, ultra-fast transfer of power between sources, adding our WiFi Breaker to the input or output lines allows you to:

• Remote Power Cut-Off: Turn your entire home or specific load on/off from anywhere in the world via the Tuya / Smart Life App.

• Energy Monitoring: Track your real-time electricity consumption (kWh) and voltage fluctuations directly on your phone.

• Smart Scheduling: Set timers to automatically switch to your Backup/Solar source during peak electricity hours in Pakistan to save on bills.

• Voice Control: Fully compatible with Amazon Alexa and Google Assistant for hands-free operation.
