TOMZN-TOMPD-63SW-WiFi-Smart-Breaker-10-in-1-Protector-Pakistan

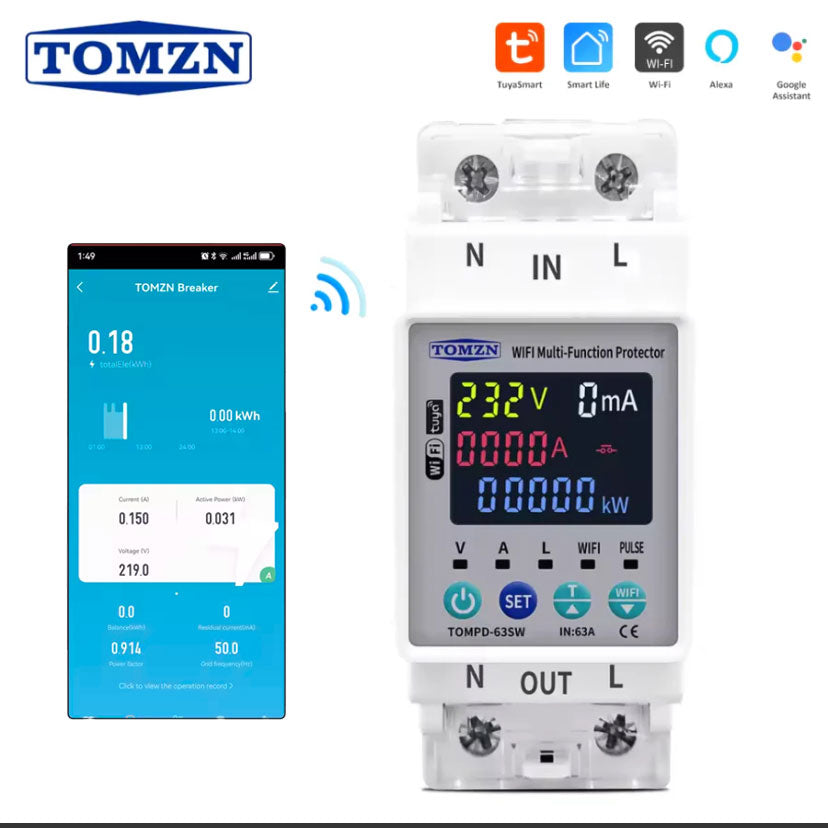

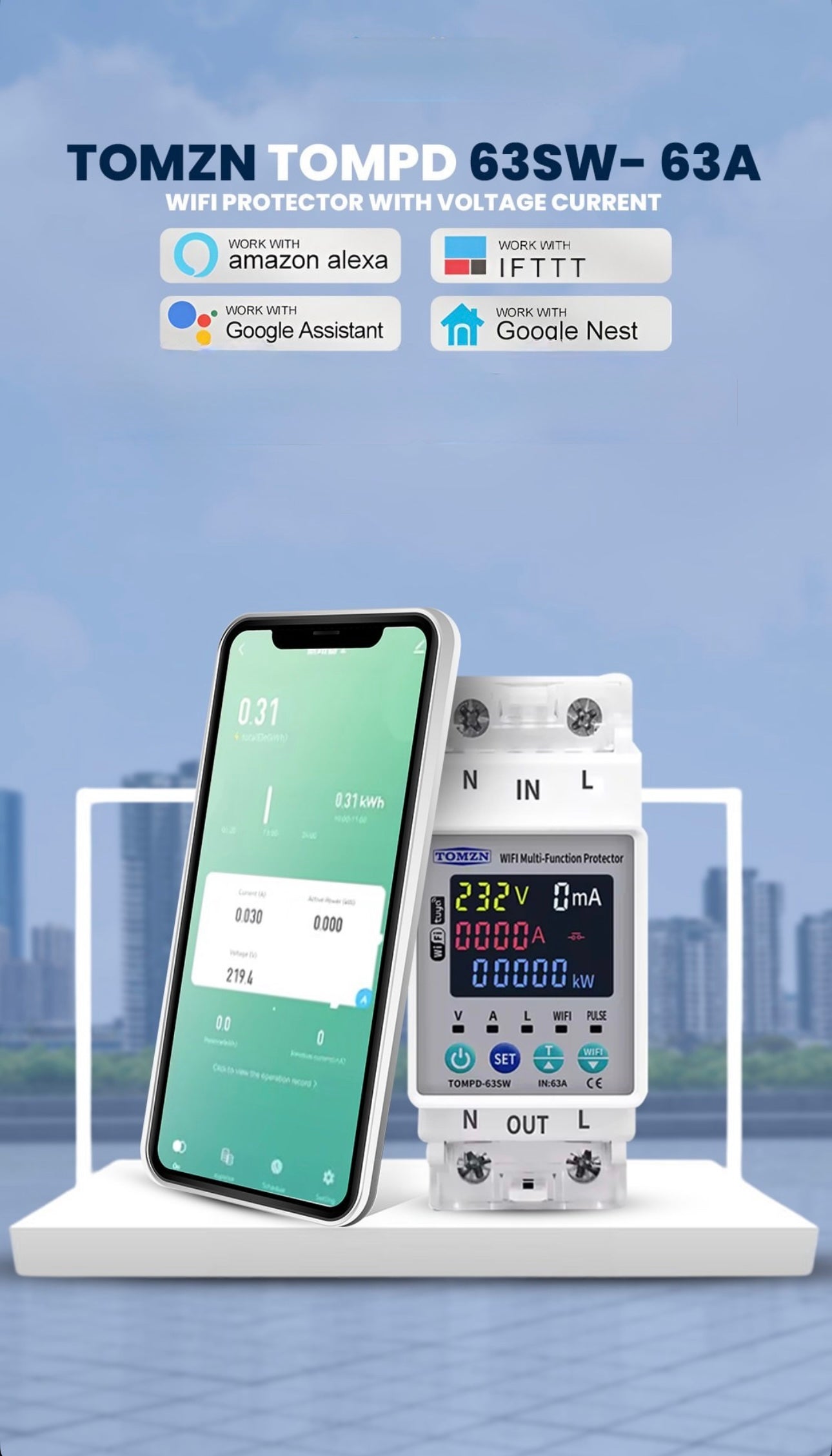

Tomzn TOMPD 63SW- 63A WIFI Protector with voltage current and leakage protection

Rs.5,200.00
Rs.6,899.00
Rs.5,200.00
Save Rs.1,699.00
🚚 Free Shipping!
Please hurry! Only 2 left in stock
10 customers are viewing this product
WhatsApp ORDER ON WHATSAPP
🚚
Built & Shipped: Delivered within 2-3 Business Days.
🛠️
Installation Services: Available for customers in Lahore.
For installation charges and scheduling, please reach out to Contact us on WhatsApp

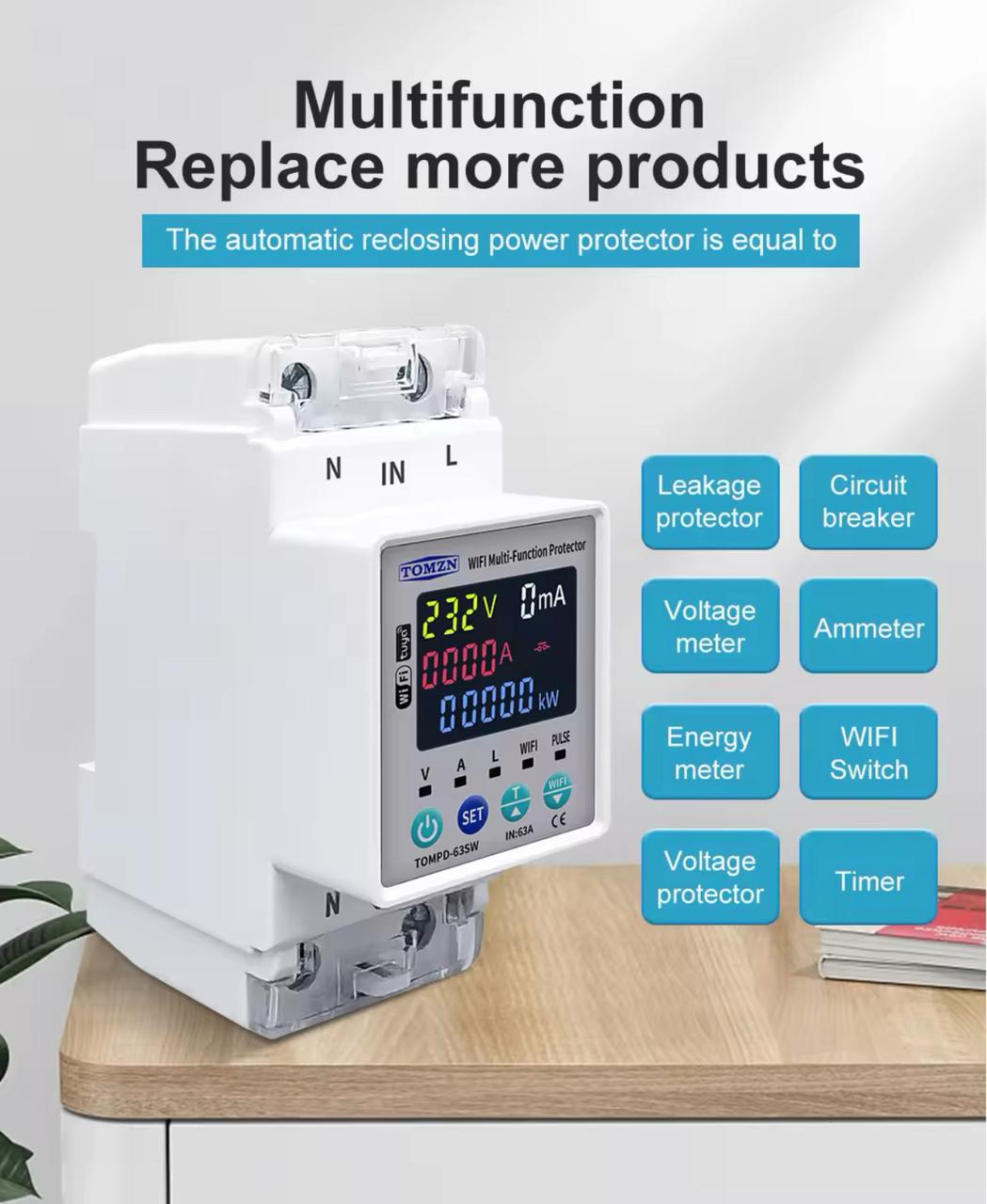

Running appliances on unpredictable voltage is one of the most common causes of burnt motors, damaged compressors, and electrical fires in Pakistani homes. The TOMZN TOMPD-63SW replaces a standard MCB with a WiFi-connected breaker that watches voltage, current, and earth leakage continuously — and cuts power automatically the moment any reading crosses a safe limit, all while giving you a live view of your electricity usage from your phone.
Unlike a passive circuit breaker that only trips on a hard short, the TOMPD-63SW is an active protection system: you set the thresholds, and it enforces them 24/7, even when you’re not home.

Key Features:

1. Remote App Control — Switch the breaker ON or OFF from anywhere using the
   Tuya Smart or Smart Life app, as long as you have an internet connection.

2. Live Electrical Monitoring — See real-time voltage, current, power draw,
   and earth-leakage readings on your phone, plus daily/monthly/yearly usage
   history.

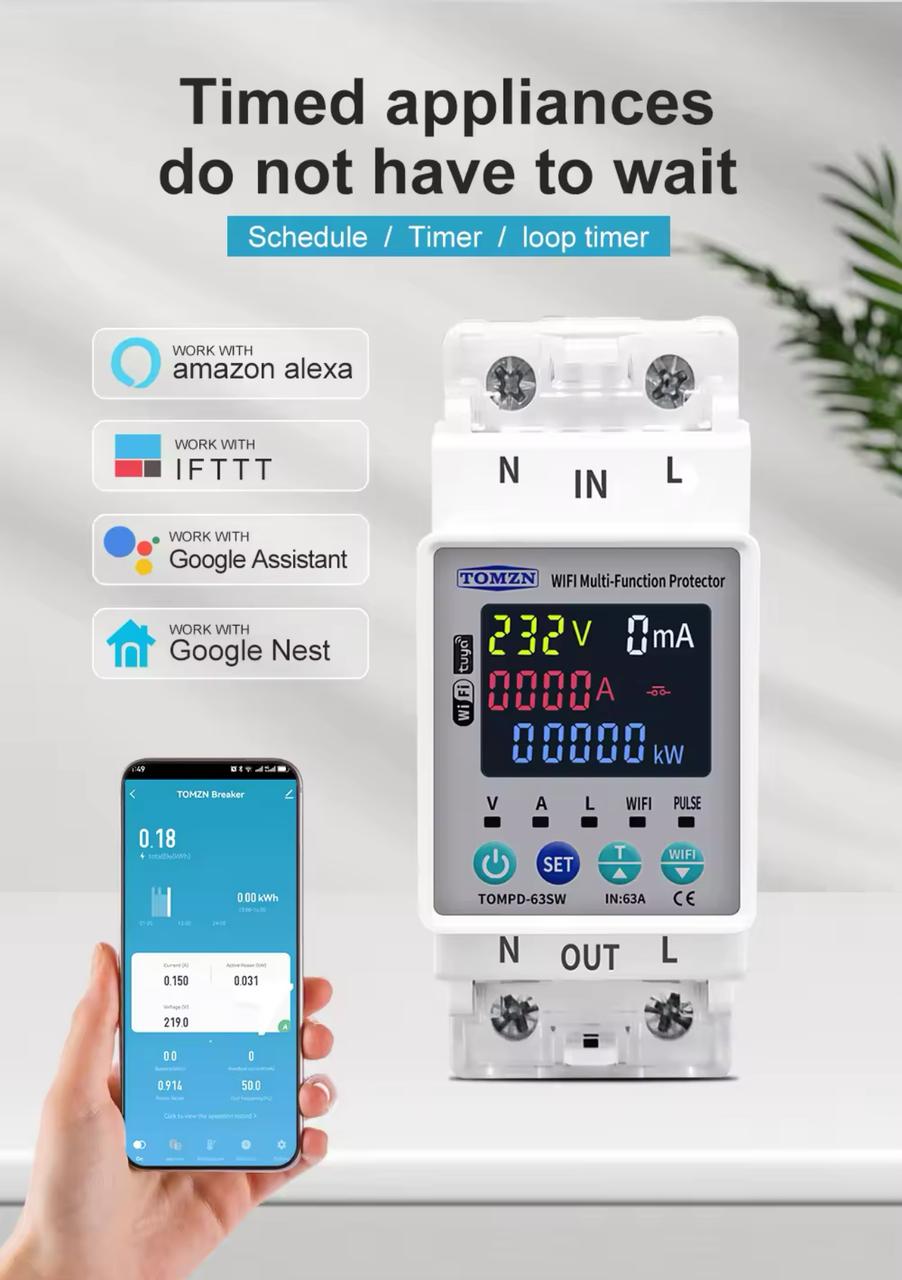

3. Scheduled Automation — Set fixed ON/OFF times inside the app so circuits
   switch automatically without you touching the breaker.

4. Unit Lock (Expense Management) — Set a monthly kWh ceiling (e.g. 300
   units). Once your consumption reaches that number, the breaker cuts power
   automatically — built specifically to stop you from tipping into WAPDA's
   next billing slab by accident.

5. Adjustable Voltage Protection — Set your own under-voltage and
   over-voltage cutoff points instead of relying on a fixed factory limit.

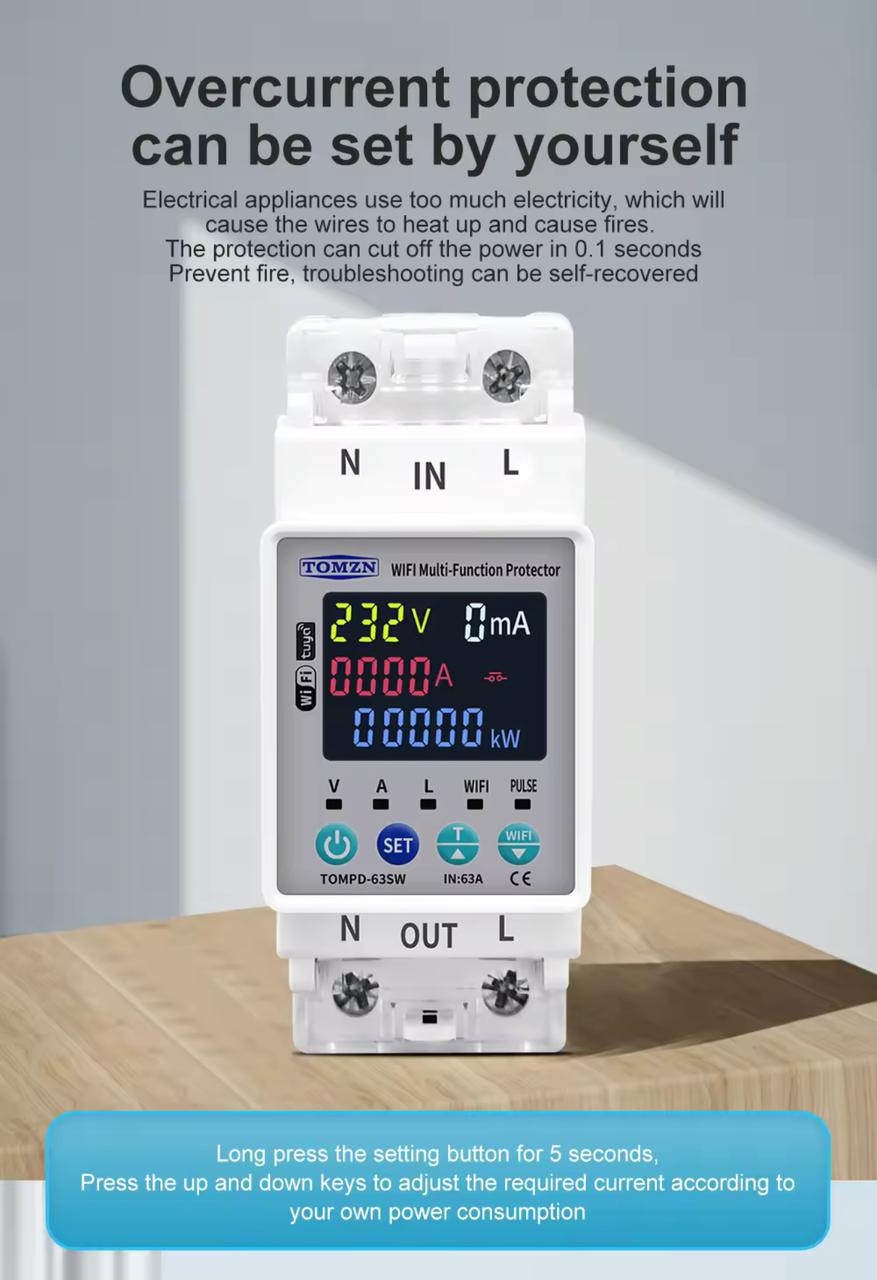

6. Adjustable Overcurrent Protection — Set the exact amperage at which the
   breaker should trip, matched to your actual load rather than a generic
   default.

7. Earth Leakage Protection — Detects current leaking to ground and cuts
   power in roughly half a second, reducing shock risk.

8. Voice Control — Works with Google Assistant and Amazon Alexa for
   hands-free switching.

9. Manual Override — A physical button on the unit lets you switch it
   locally, no app required, in case your WiFi is down.

10. Low Standby Draw — The breaker's own electronics consume under 2W, so
    it doesn't add a meaningful cost to your bill.


Built for Pakistan’s Billing Slabs: Unit Lock
Pakistan’s tiered electricity billing punishes households that cross a slab threshold — an extra 50–100 units can jump your entire bill into a higher rate. The TOMPD-63SW’s Unit Lock (Expense Management) feature lets you set a monthly kWh ceiling (for example, 300 units). Once consumption hits that number, the breaker disconnects automatically, so you never get pushed into the next slab by accident. This is the single most-requested feature from buyers checking their WAPDA bill every month.





TOMPD-63SW Specifications
Model TOMPD-63SW
Rated Current 1A – 63A (adjustable)
Rated Voltage AC 80V – 300V
Frequency 50Hz / 60Hz
WiFi 2.4GHz only (5GHz not supported)
App Tuya Smart / Smart Life
Voice Assistants Google Assistant, Amazon Alexa
Under-Voltage Protection 85V – 220V (default 170V)
Over-Voltage Protection 110V – 300V (default 275V)
Earth Leakage Protection 10mA – 300mA
Leakage Trip Time ~500ms
Standby Power Draw < 2W

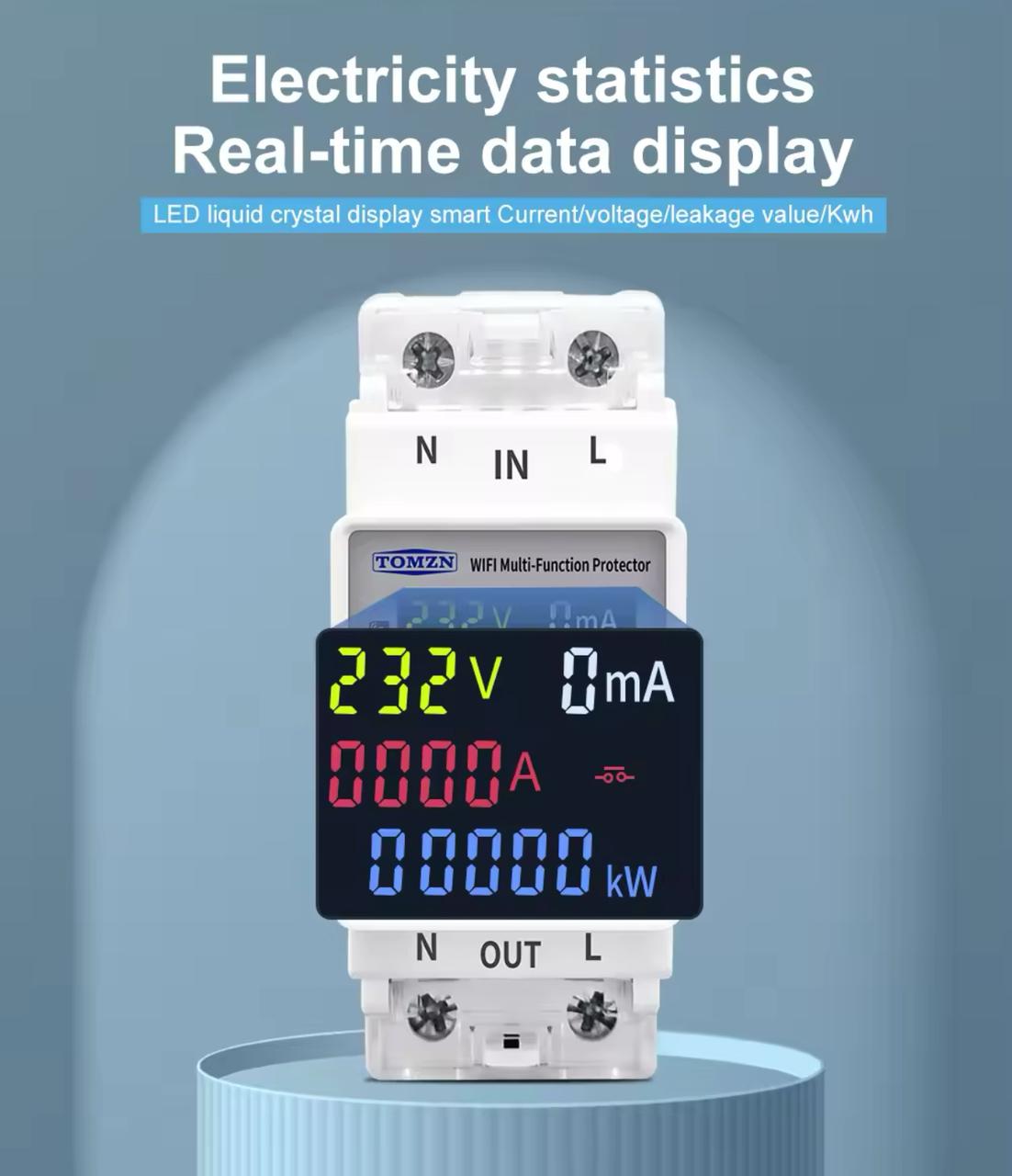

Display Built-in HD color display
Mounting Standard DIN rail
Frequently Asked Questions
Does the TOMPD-63SW support net metering / solar grid-feeding?

It can be installed alongside a net-metering setup, but it does not distinguish or display imported vs. exported units in the app — it simply measures total current flow through the line it's installed on.

What happens when WAPDA power returns after an outage?

The breaker resumes power automatically but does not remember whether it was manually switched off before the outage — it always powers back on by default.

Does it have a Unit Lock Feature?

YES. The TOMPD-63SW comes with Unit Lock Feature

Does it cut both Live and Neutral, or just Live?

It switches the Live (L) wire only.

What's the difference between the Unit Lock feature and Over-Current Protection?

Over-current protection trips instantly if the instantaneous current exceeds your set amperage, protecting wiring and appliances. Unit Lock trips once cumulative monthly energy (kWh) reaches your set cap, protecting your electricity bill.

Is professional installation required?

Yes — this replaces a breaker inside your live distribution board and should be installed by a electrician.
