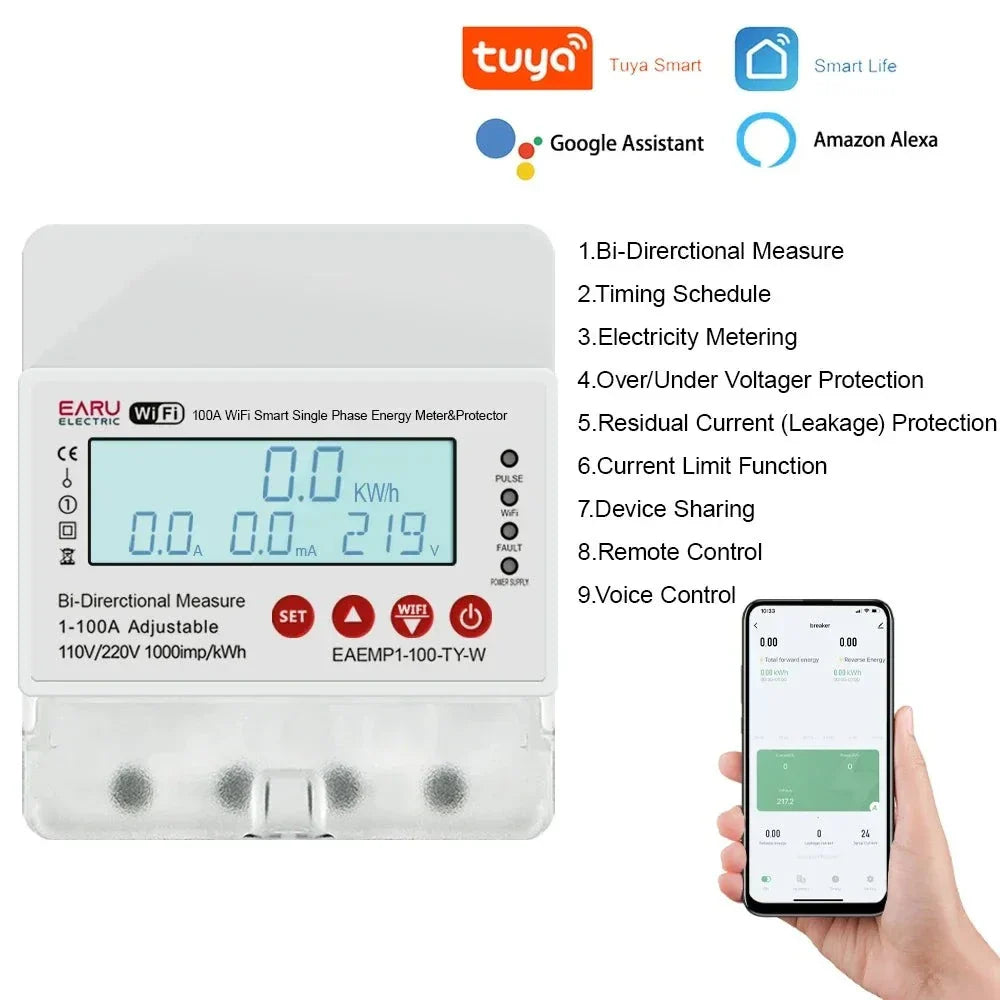

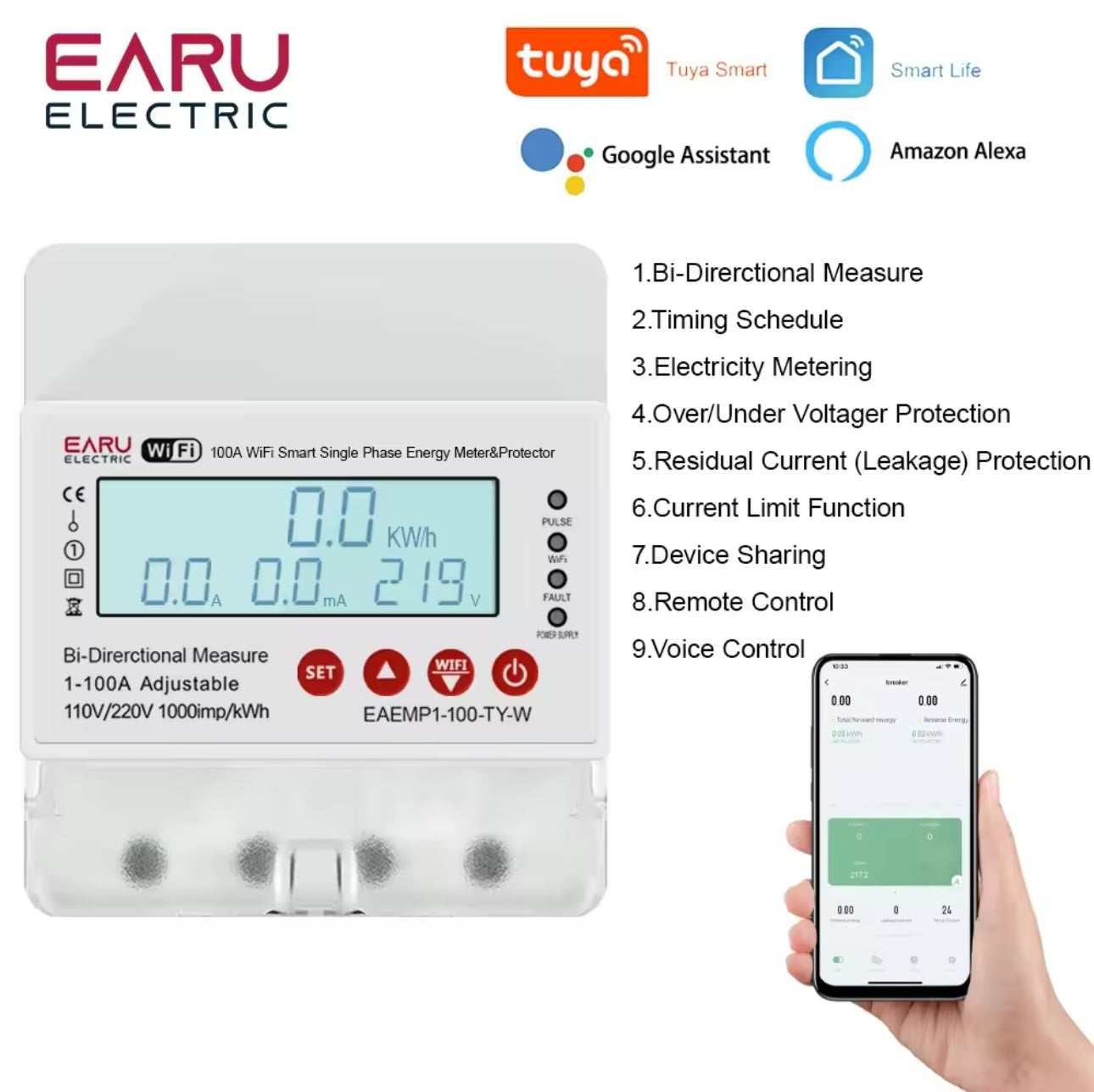

100A Tuya WiFi Smart Single Phase Energy Meter Over Under Voltage Protector Electricity Bi-Directional Measure kWh Power Meter

Product specification

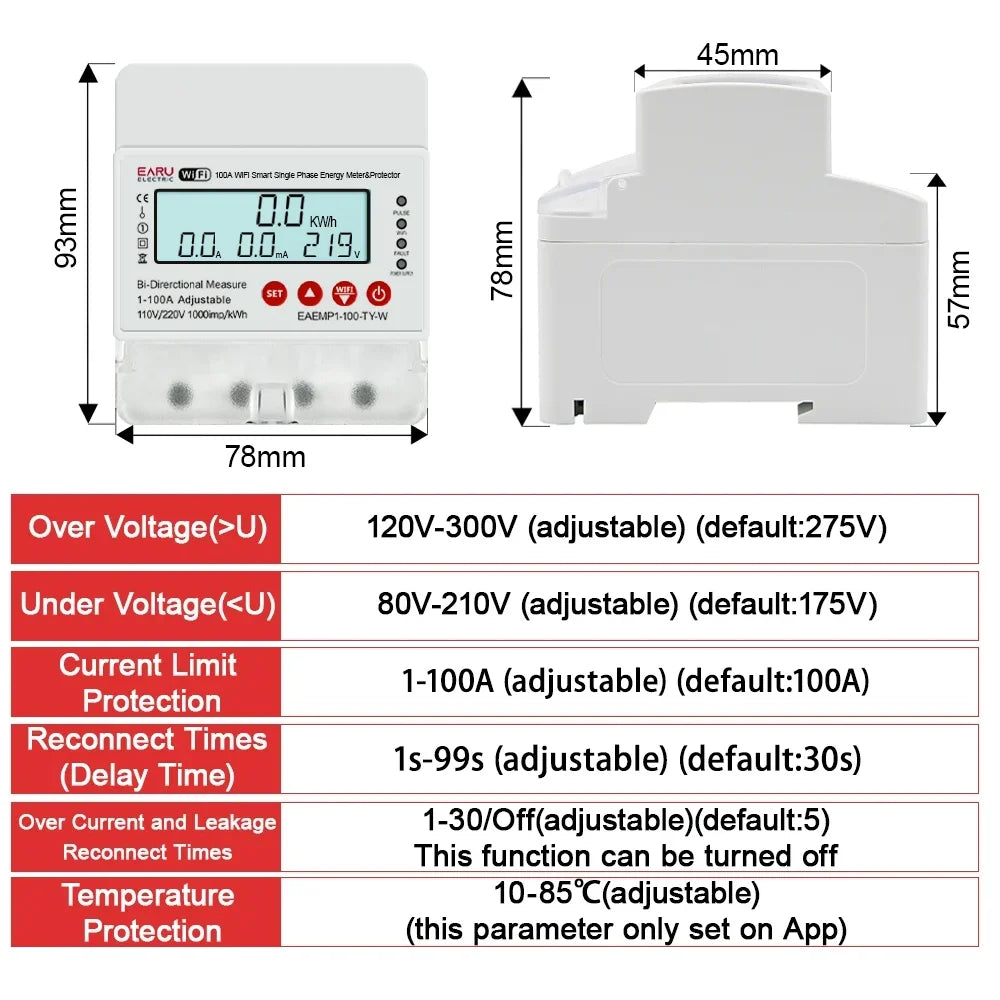

Rated voltage: AC110/230V; Frequency: 50Hz/60HZ

Function:

1. Under Voltage Protection 80V-210V (adjustable) (default: 175V)

2. Over Voltage Protection 120V-300V (adjustable) (default: 275V)

3. Over Current Protection 1A-100A (adjustable) (default: 100A)

4. Reconnect Time (Delay on Time): 10s-90s (default: 30s)

5. Power Display Range：0-99999.9kWh

6. Temperature Protection:10-85℃(Adjustable)

7.Over Current and Leakage Reconnect Times:1-30/OFF(Adjustable)(default:5)

8.Four Timing Modes: Schedule Mode/Countdown Mode/Cycle Timing/Inching Mode

NOTE :If the protector trips three times due to leakage  protection, the device will no longer be reconnected automatically again until the user has checked where is the power failure and fixed it to make sure the people safety! Other protection and reconnecting can cycle for over 99999 times.

PS: This device has memory function, when the power is cut off, the device can memory the Kwh, over voltage, under voltage and over current value.
